Clean Mod Work Thread!

[Beelay]

This thread is fantastic to pore over!
I've done the occasional mod (N64 RGB for a friend, Region switch on my Model 1 PAL Megadrive, button replacement in a busted AES controller). They look clean on the outside but it's all spaghetti on the inside, so these are a nice change to look at! Inspiring!



[GohanX]

Feel free to look at what others are doing and adapt the techniques. Since Skips started the clean mod crusade my own stuff looks 100% better as a result.



[leonk]

Here are some of the other MODs I've done for me / customers recently (PM me if interested - I typically do nes reproductions but can do mods as well)

Sega Nomad LED backlit replacement:



Gameboy / gameboy pocket backlight:





Gameboy Advance backlit LCD replacement (no longer offered - can't source LCD):



NESRGB installs (nes top loader, front loader, famicom AV):





Sega naomi mods:
- null pics
- latest bios upgrades
- piforcetools systems
- CF systems



[kahel]

I am pretty new to modding so this thread was really awesome to get an idea of what the work of the pros look like.

I have been able to do 2 mods so far ... Modified my N64 for RGB and did the composite mod on a Atari 2600.

Here the end result , forgot to take a pic inside.



It really cool to be able to connect the Atari to my xrgb-mini hehe.



[Voultar]

I know this thread is all about clean internal mod work, but I wanted to share my latest restoration project.

**56K Warning**

Look at the beautiful turd that arrived by mail today:





But with a little effort..





The resurrection is near!!

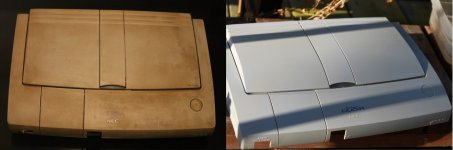

I'm 80% finished restoring the casings, but here's a nice before & after shot:



[bulletnyourass]

Voultar,

What did you use to clean it?

Phillip



[Voultar]

Voultar,

What did you use to clean it?

Phillip

A non-abrasive micro sponge, and a cocktail of 20% peroxide to reverse the bromine (yellowing).



[bulletnyourass]

Damn. That looks good as new. Congrats.



[Syn]

Damn. That looks good as new. Congrats.

Yeah, Voultar that really turned out sweet. Great job!



[goombakid]

**56K Warning**

Show of hands: who really is still using dial-up?...other than joe8...

View attachment 20417

Very nice! Was majority of that just yuck grime or was it yellowing pretty bad? And you did pretty good cleaning around the logo without rubbing it off.



[Voultar]

The yellowing itself was fairly significant, the 4th picture down was taken pre 20/100 h202 cocktail treatment. I'd say that it was 60% nicotine stains, and 40% plastic yellowing.

The trick to removing debris without being abrasive with the casings or artwork is the micro-sponge.

EDIT:

I just finished the region mod for the 'ole Duo-R. I wanted to do a clean, short-wire installation. I also didn't want to cut any of the pins from the Hu-Card slot, so I de-soldered the entire unit and simply lifted the pins that I needed to grab signals from. This was my first rodeo, so I experimented around until I found an install method that I felt was worthy.



[trenog]

The yellowing itself was fairly significant, the 4th picture down was taken pre 20/100 h202 cocktail treatment. I'd say that it was 60% nicotine stains, and 40% plastic yellowing.

The trick to removing debris without being abrasive with the casings or artwork is the micro-sponge.

EDIT:

I just finished the region mod for the 'ole Duo-R. I wanted to do a clean, short-wire installation. I also didn't want to cut any of the pins from the Hu-Card slot, so I de-soldered the entire unit and simply lifted the pins that I needed to grab signals from. This was my first rodeo, so I experimented around until I found an install method that I felt was worthy.

I really like that approach. I wouldn't have thought of that either! Kudos in your region modding



[Voultar]

Finished up the RGB circuit this evening:



[Yodd]

Looks good dude.



[Voultar]

Thanks again for sending me the schematic! I had fun building it.

EDIT:

I'm finished with this old girl. I've essentially done everything that I wanted to do.

Here's a nice little, low quality video to show'r off a little.



[seanami]

Here are some of the other MODs I've done for me / customers recently (PM me if interested - I typically do nes reproductions but can do mods as well)

Sega Nomad LED backlit replacement:

For the Nomad, where did you source the screen from? Having trouble finding a good one that doesn't flash av inputs everytime I turn it on



[GohanX]

http://www.ebay.com/itm/251584933137?_trksid=p2059210.m2749.l2649&ssPageName=STRK:MEBIDX:IT

I used that screen on my Game Gear, should work fine on the Nomad as well. No "AV" input message.



[vvv]

This thread is an inspiration. Here is my contribution

A clean AV Famicom NESRGB mod I did for a customer.



[Kiel]

Gamecube component/rgb/vga mod



[GohanX]

*drool*



[Kiel]

Two top loaders with snes style back panels, a duo rx, and a twin fami banged out all with RGB.

And the latest I did was two PCE IFUs RGB modded with snes style sockets and a twin fami with the socket as well. The twin also does s-video and composite through the socket



[Teddy KGB]

Looks good Kiel. E showed me a couple pics of your work a few days ago at my place... I dig, I dig.



[mikey]

And the latest I did was two PCE IFUs RGB modded with snes style sockets and a twin fami with the socket as well. The twin also does s-video and composite through the socket

Those look awesome, really clean!



[Atro]

Really love that job Kiel.
The connectors fit in right in the spot.

Congrats.



[fremen]

Hi dude,

http://www.ebay.com/itm/251584933137?_trksid=p2059210.m2749.l2649&ssPageName=STRK:MEBIDX:IT

I used that screen on my Game Gear, should work fine on the Nomad as well. No "AV" input message.

Please, could you indicate me a tutorial??

Thank you very much in advance

Un saludo
