Headphone jack gets hot…

[Neodogg]

So I wired up a headphone jack to to my harness so that I could either use the speaks on the cab or put phones in if it’s late.
When I plug in my headphones I can feel them get really warm/hot with in 30 secs. To the best of my knowledge there is no voltage going through just L/R/grnd.
I have the speakers wired up to a male screw terminal to plug into the jack. The speakers sound fine but the headphones heat up…



[Lach]

I'm pretty sure there's voltage on an amplified speaker output.



[skate323k137]

Headphones usually have way different impedence than normal 4 / 8 ohm speakers.



[SignOfZeta]

To the best of my knowledge there is no voltage going through just L/R/grnd.

Multimeter.



[awbacon]

Headphones usually have way different impedence than normal 4 / 8 ohm speakers.

Exactly. Sounds like excess electricity is just dissipating as heat.



[Gremlin]

Yeah, don't do that lol. Your headphones are probably expecting line level audio and you're sending it amplified speaker levels of juice

Should be using something like one of these inline:

Home

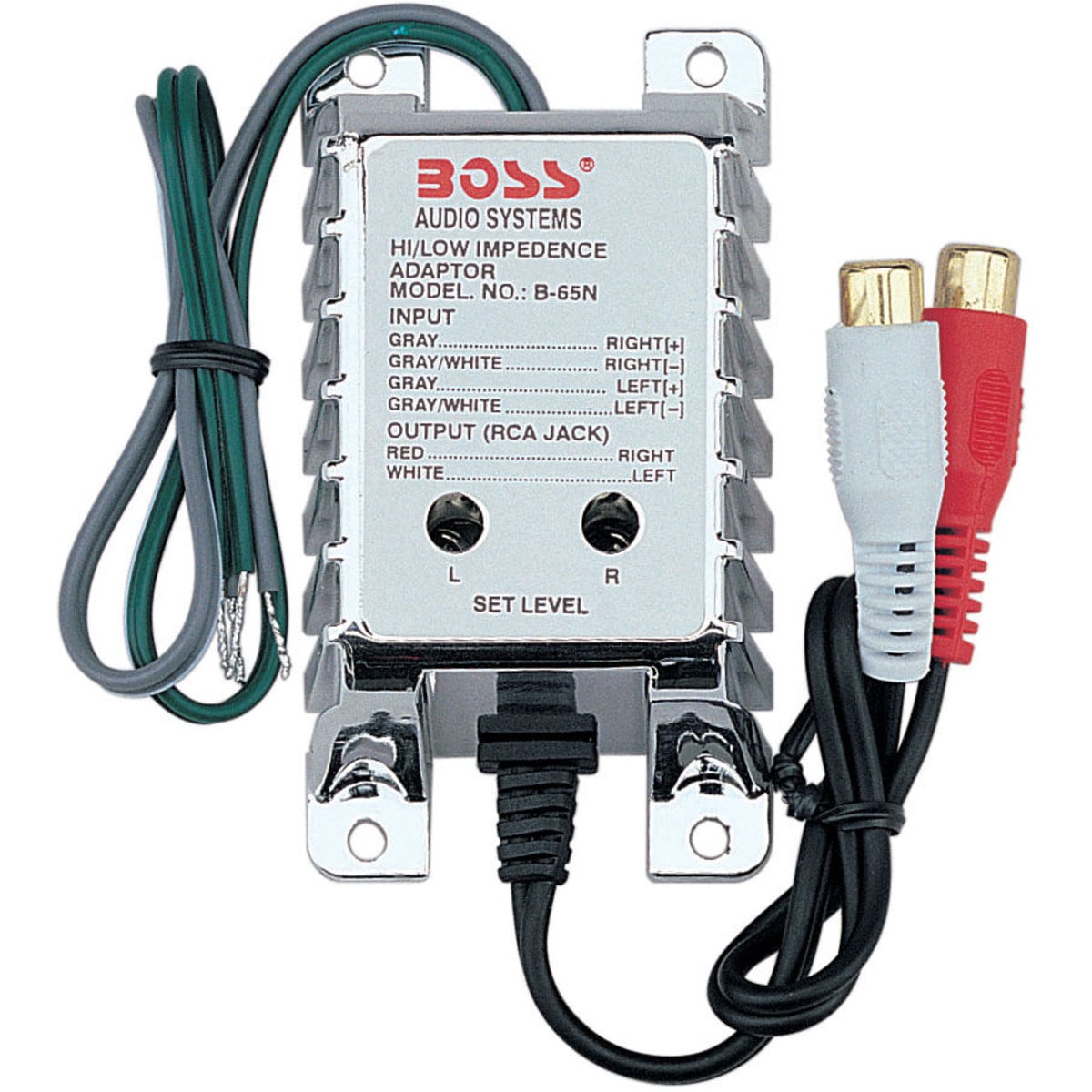

BOSS B65N Speaker Level to Line Level Output ConverterThe adjustable B65N two-channel speaker-level to line-level converter (also called a high-to-low adapter), from BOSS, allows for the installation of line-level mobile audio electronics, such as amplifiers and active crossovers, into systems...

www.parts-express.com



[Neodogg]

Yeah, don't do that lol. Your headphones are probably expecting line level audio and you're sending it amplified speaker levels of juice

Should be using something like one of these inline:

Home

BOSS B65N Speaker Level to Line Level Output ConverterThe adjustable B65N two-channel speaker-level to line-level converter (also called a high-to-low adapter), from BOSS, allows for the installation of line-level mobile audio electronics, such as amplifiers and active crossovers, into systems...

www.parts-express.com

Ha! That place is 10mins away!



[Neo Alec]

Yeah, don't do that lol. Your headphones are probably expecting line level audio and you're sending it amplified speaker levels of juice

Should be using something like one of these inline:

Home

BOSS B65N Speaker Level to Line Level Output ConverterThe adjustable B65N two-channel speaker-level to line-level converter (also called a high-to-low adapter), from BOSS, allows for the installation of line-level mobile audio electronics, such as amplifiers and active crossovers, into systems...

www.parts-express.com

Not line level. You still need a headphone amp or it will be too quiet.
