LM1881 schematic to use with PVM 2950Q

[Fandangos]

I've read on this forum that the PVM 2950Q really has sync issues and it's actually true.

After building my own scart to bnc cable I got no sync.

And I'm not actually into buying the Sync Striker stuff for $45 to use an IC that costs $1.

So what's the correct schematic to build the LM1881?

I've saw many different ways of building it and I would like to find out the correct one for the PVM 2950Q.



[Xian Xi]

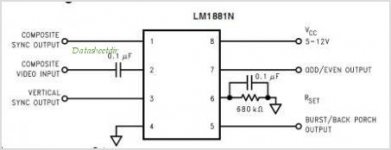

This is the one I always use:



I only use pins 1, 2, 4, 6 and 8. But for the record, I rarely ever need to use a sync cleaner with my PVM.



[skate323k137]

^^ Looks right to me.

A lot of PVM's don't need them, but I'm pretty sure the 2950Q is one of the ones that does.



[Fandangos]

This is the one I always use:

View attachment 6879

Thanks Xian Xi.

The LM1881 will be here tomorrow and I'll test it out



[Fandangos]

Just wanted to say it worked )

Already posted the pictures of my PVM-2950Q working on the CRT Fetish thread.

Thanks once again Xian Xi.
