Nanao MS9 missing transistor

[chinitosoccer]

Is there anyone who can tell me what type of transistor goes in here?:



It seems that the previous owner was not able to find a replacement and scrapped the whole chassis.

Can someone help me identify any other missing components?



[skinny503]

should be a number printed on the board as to what component goes there



[chinitosoccer]

It says C515 and D502.



[skinny503]

C515 - http://www.cooperindustries.com/con...ct-datasheets/Bus_Elx_DS_2006_C515_Series.pdf

Contact therealbobroberts if you are in need of parts! http://www.therealbobroberts.net/



[chinitosoccer]

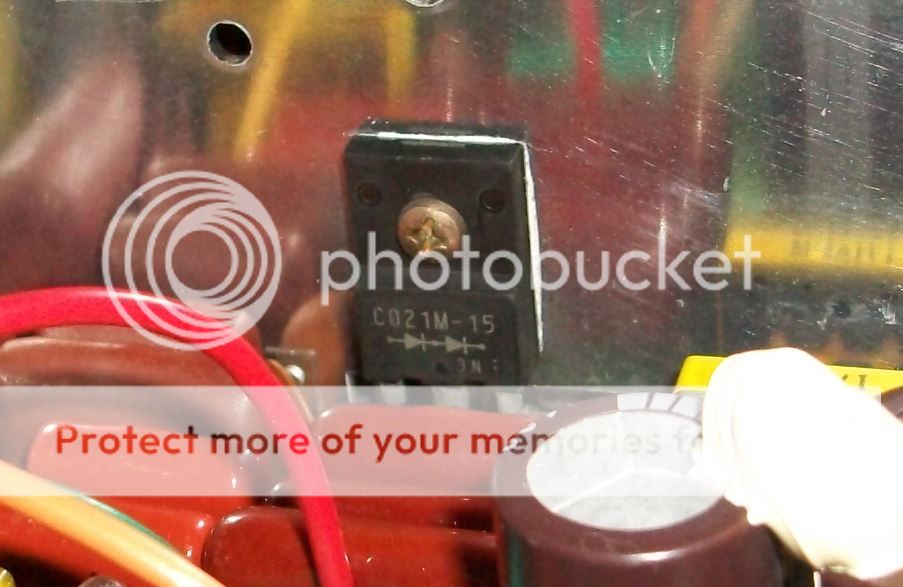

That one from the link you posted doesn't look like the one it's missing which looks like this, it has 3 solder points/legs and it goes pressed into the metal walls.



[skinny503]

pretty sure thats a voltage regulator....



[shadows]

C515 refers to a capacitor, D502 to a diode. Which one, I have no idea.
Theres more than just voltage regulators that comes in a TO-220 package.



[chinitosoccer]

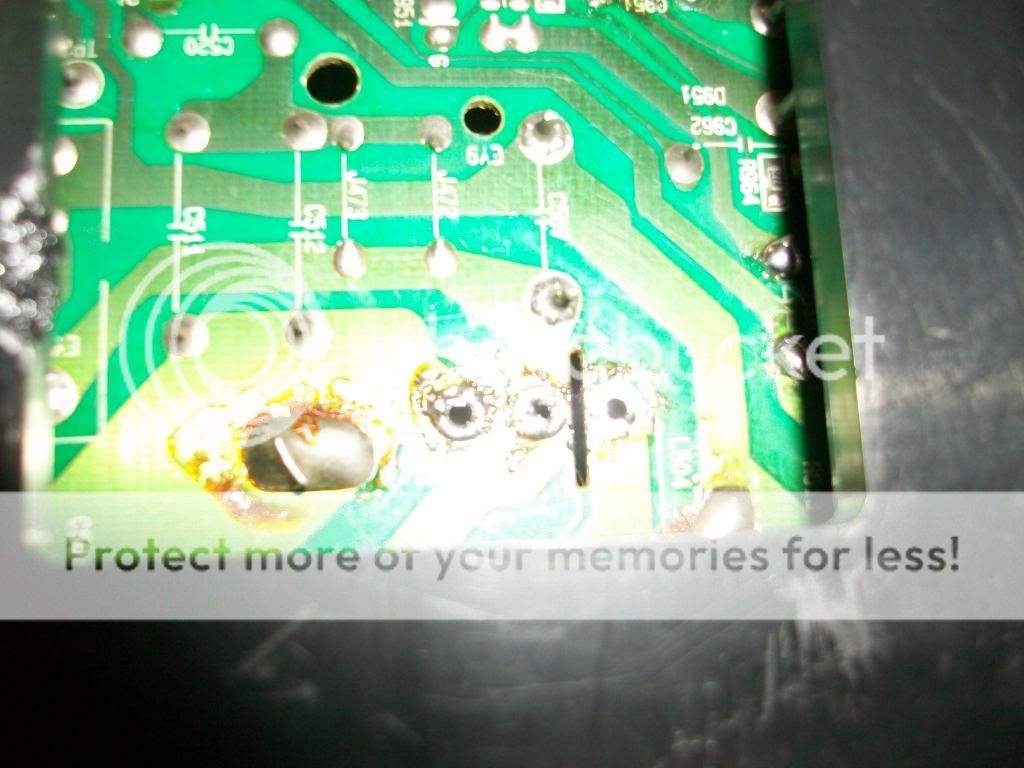

A couple more shots of the PCB, it seems like it is not a transistor but a voltage regulator then..



solder side



[pipes]

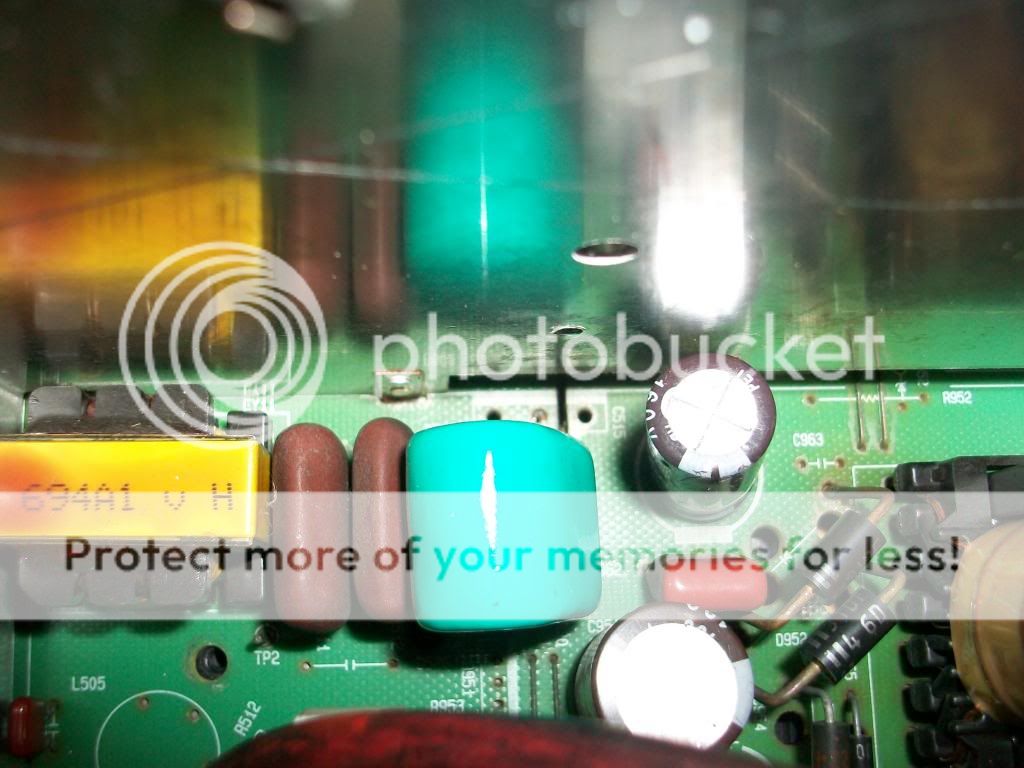

I actually just finished up a cap kit on one of mine so I took a pic for you. Hope that helps.



[chinitosoccer]

I see "....M-15" and "7D1"??

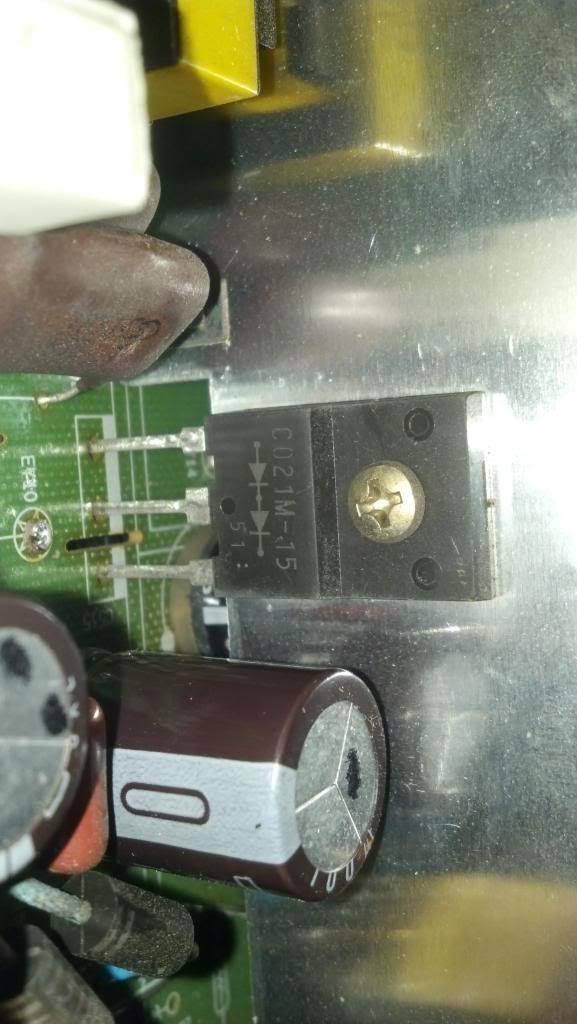

It looks like this one from one of my MS8's:

Can anyone please confirm if its the same one?



[arcade game]

I double check on my spare ms9-29 chassis
And all of them have the same part#
Here you go this is what you need
Use the one from the ms8,it will work
Cause is the same one



[chinitosoccer]

The MS8 chassis is working, where can I order a new one?



[skinny503]

Contact therealbobroberts if you are in need of parts! http://www.therealbobroberts.net/

.



[chinitosoccer]

forgive me, I'm an idiot.



[skinny503]

FYI, you can right clock on it and choose the "copy email address" option.

Get ahold of him bob147@bellsouth.net

Otherwise mouser or digi key would be my next bet



[chinitosoccer]

Got an answer from http://www.therealbobroberts.net/: "I have no clue what that is." I even sent him a picture.



[skinny503]

http://www.alibaba.com/product-detail/C021M-15-IC-_762515272.html

thats all i could find



[chinitosoccer]

Thanks, I will try to contact them, China...



[skate323k137]

http://www.aliexpress.com/store/product/Original-Used-C021M-15/439795_1504571855.html if you want 20 of them lol



[chinitosoccer]

It seems that this part is known for being prone to fail on these chassis, http://shmups.system11.org/viewtopic.php?f=6&t=45992 so having a reserve of these wouldn't do me any harm.



[300wins]

C515 is a capacitor that is 100uf 160v

Here is a thread I posted a while back for a Nanao MS9 chassis: http://www.neo-geo.com/forums/showthread.php?244268-Nanao-MS9-cap-listing-and-location&highlight=



[chinitosoccer]

I have the C515, what I'm missing is the voltage regulator "C021M-15"



[ReplicaX]

It seems that this part is known for being prone to fail on these chassis.

HOTs and voltage regulators are common to fail on all CRT monitors, that is the nature of flybacks with age.



[chinitosoccer]

So, do I need to replace the flyback too??



[ReplicaX]

So, do I need to replace the flyback too??

Unless it shows signs of leakage, I'd press forward. But this is why you should get more than one Regulator or HOT. Last thing you want to happen is a flyback blow it and you only had one.
