Capcom Status 25 candy cab

[chinitosoccer]

I have this weird Capcom "Status" cabinet whose coin door has been drilled by the previous owner to install a front coin mech, as it can be seen in the picture the door is destroyed and the original coin mech has also been gutted together with its mounts,

I intend to rebuild it, but first I will need some pictures and measurements, is there someone here with this same cab who can help me?

here's some photos of the door:



[Adderall]

Gabe has a status 18... I don't know anybody who has a 25. You might want to cross post to AO if you haven't yet.



[chinitosoccer]

Is Gabe registered here at NG forums? also, is that his nickname in AO? Status 18 and 25's have the same coin doors, only the PCB door is a bit bigger on the 25's.



[Adderall]

I gave him the heads up. this is his cab...



[skate323k137]

/me waves at Gabe



[chinitosoccer]

Already contacted him over the Shmups forums, let's see if we can work this out.



[Jonmkl]

Would love to see pics of your status once you get things a bit more sorted! Love that cab :-P



[arcade game]

I have this weird Capcom "Status" cabinet whose coin door has been drilled by the previous owner to install a front coin mech, as it can be seen in the picture the door is destroyed and the original coin mech has also been gutted together with its mounts,

I intend to rebuild it, but first I will need some pictures and measurements, is there someone here with this same cab who can help me?

here's some photos of the door:

PM send



[gabe]

Thanks Adderall! Hi skate!

chinitosoccer - I'm replying to your inquiries here (instead of PM) in the off chance that this info will help someone else.

The coin return opening measures 32mm (w) x 31mm (h).

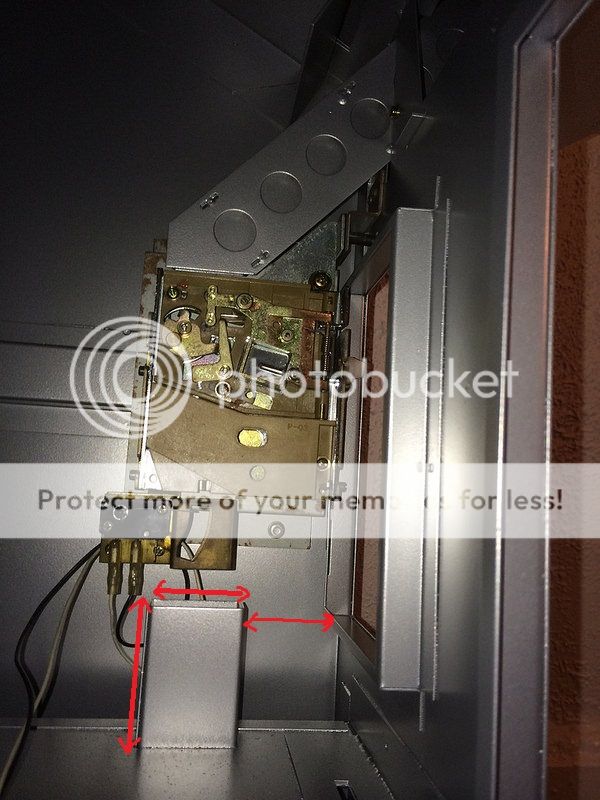

Here are some pics. The red button was added by a previous owner . I kept it because it looks better than a hole.

The coin mech itself actually mounts to a bracket, which I failed to get powerdercoated with the rest of my cab, hence the rust.

Let me know if there is anything else I can provide. I'm happy to help!



[chinitosoccer]

Those pics are great, can you take a picture of the bracket without the coin mech?? I'll need to rebuild that and the coin compartment.

I will need measurements for these too:



[gabe]

I'll try to get a good pic of the bracket without the coin mech over the next couple days.

I should also note that these numbers maybe different for you. The Status 18 and 25 do not share the same dimensions. They have different control panels, for example.

Disclaimer: I made every effort to take accurate measurements, but using a tape measure inside a dark tiny cab isn't exactly ideal.



[chinitosoccer]

Thanks again Gabe, the control panels are a bit different indeed, but I think they share the same dimensions for the 2 tiny doors, I'm waiting for arcade game measurements from his Status 25 coin door just in case, that way we can see what are the differences between the 2 models more precisely.



[chinitosoccer]

from arcade game:

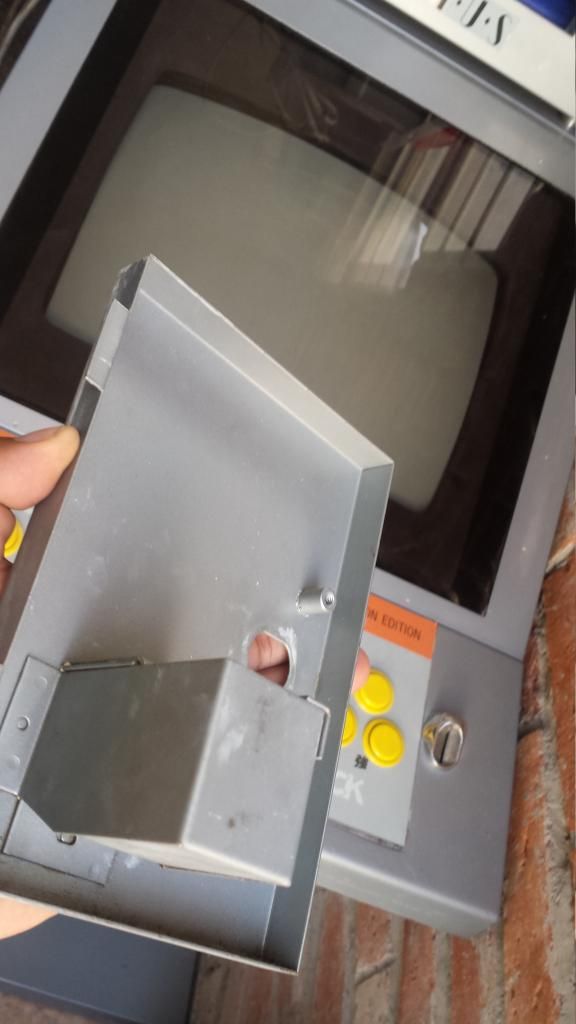

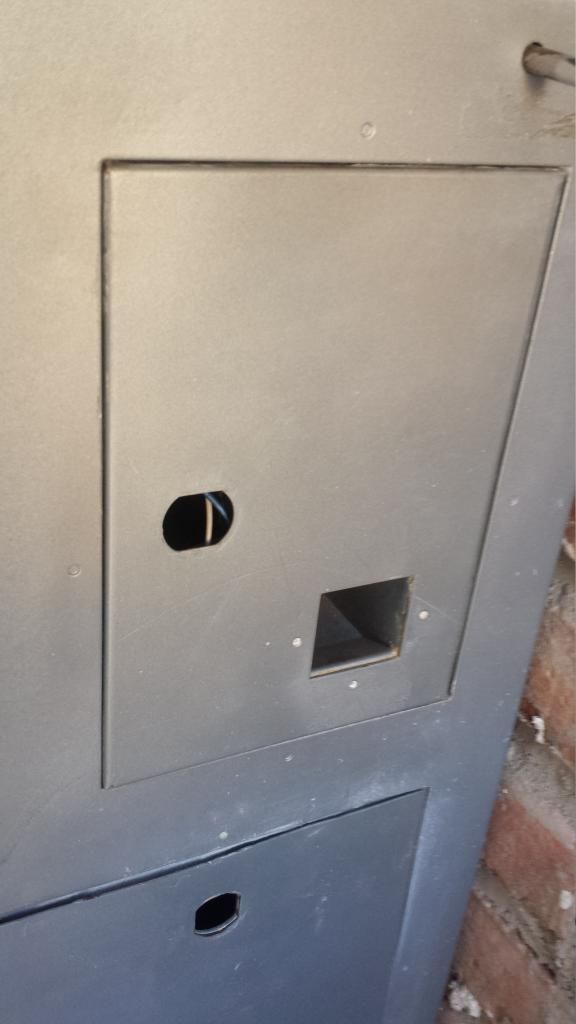

Heres some pictures of a capcom status 18
I measure the parts and they are same as gabe's cabinet
His pics are better tha mine

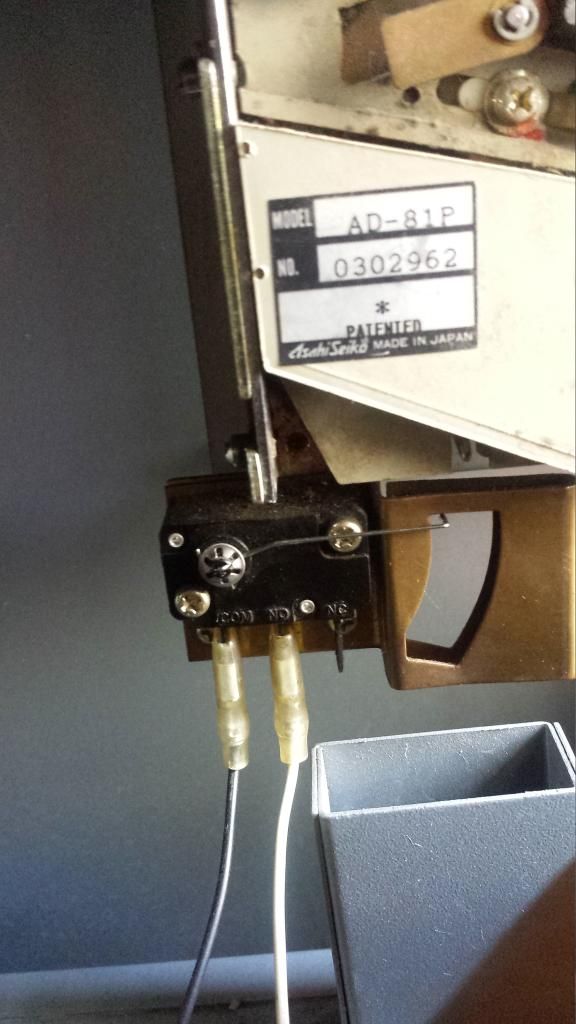

I still need pictures/meassurements from the coin mech mount and coin rejection switch/mechanism



[gabe]

If no one else steps up before then, I can definitely get you the measurements early next week. I apologize for the delay, but my schedule has not allowed for much time with the cab as of late.
