Refined Consolized 2-slot: no more bitching

Alright you complaining pain-in-the-asses, I listened to the suggestions on the making of consolized 2-slots and implemented them all on the one I just finished for someone. So no, this is not a selling thread so shut up.

Similar specs as the Green Envy system:
- NeoBitz video encoder
- 3 video options for output
- All RCA mounts are the same type (even though I still like the other way)
- game switch moved to back
- wires more properly concealed
- solder points best you never seen. You have to look inside directly so see them now (no concealing them with hot glue either )
- acrylic base with antistatic foam between the board and base
- Unibios 2.0
- high gloss enamel paint job = major pain in the ass

I call it a nice pansy ass name: "In the Navy"

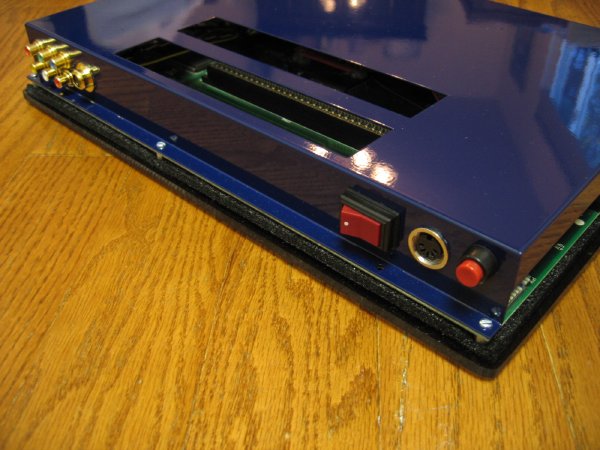

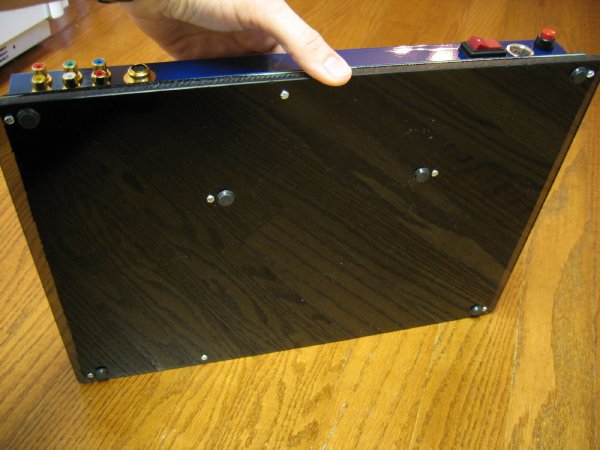

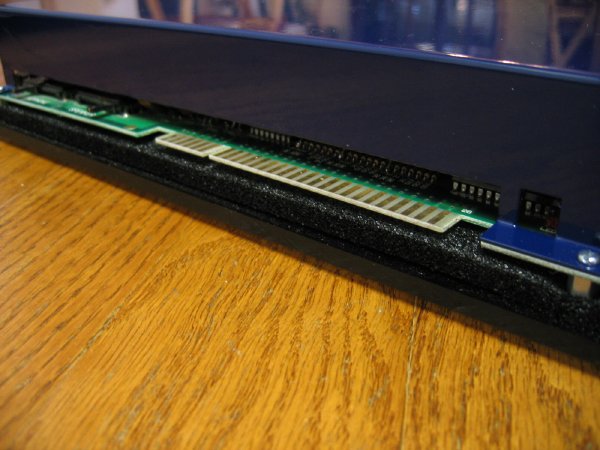

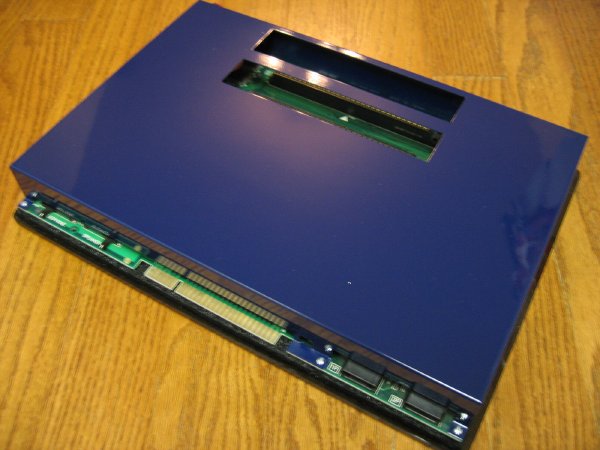

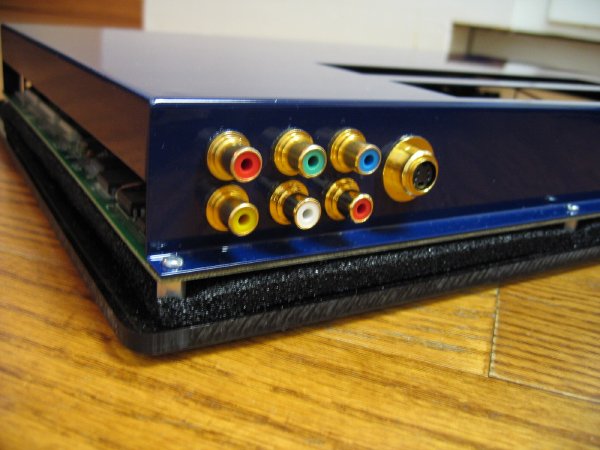

(click pics for bigger images)

nice work

mm acrylic

its best for the floor - you know.

mmmmm

Very impressive
Phix

Nice work Dean, I really like the looks of it.

If I wanted the same thing in the future what would this unit run me? Send me a PM if you can.

thanks for the compliments guys. I really like the look onf the gloss dark blue paint, but holy shit is that a pain in the ass to work with. High gloss really shows all the details of the cover, so you really need to be careful with prep work and coating. I'm considering having a body shop do the next paint job just so I don't have to get ten more gray hairs painting it.

Nice very nice its made me consider painting mine

Ok I've got a question.

- wires more properly concealed

Click to expand...

How did you do this? I was going to completely encase my 2 slot board so I could hide the wires and all the connections in a big box, but now I'm starting to think that may not be the best idea (I also worry about overheating). So where did you put the video board, wiring harness, stereo wire (I assume you plugged it into the headphone jack on the side), power wires, and all the other bits? I couldn't find a way to do it!

Tempest

Tempest said:

Ok I've got a question.

How did you do this? I was going to completely encase my 2 slot board so I could hide the wires and all the connections in a big box, but now I'm starting to think that may not be the best idea (I also worry about overheating). So where did you put the video board, wiring harness, stereo wire (I assume you plugged it into the headphone jack on the side), power wires, and all the other bits? I couldn't find a way to do it!

Tempest

Click to expand...

The RGB lines were connected to the resistors directly and the sync line was connected to the correct resistor which is just left of the resistor bank. +5V was connected to the back end of the +5V pin area where I removed a small bit of the solder mask to solder to. +12V was solder to a terminal that you can trace back from the pin itself. For the sound, I wired to the underside of the board at the headphone jack, running the cable up through one of the joystick port screwholes that are unused. Ground was straightforward.

The video board is mounted just behind the resistor bank with 4 points of hot glue contact, but in areas where you can't do any damage by removing it later.

I'll take pics next time of the inside.
